Español This way, the mechanic gets exactly what they need– a professional device ready to be used without unnecessary adapters that are not required in their daily service work. It is a solution that combines functionality, efficiency, and economy of use.

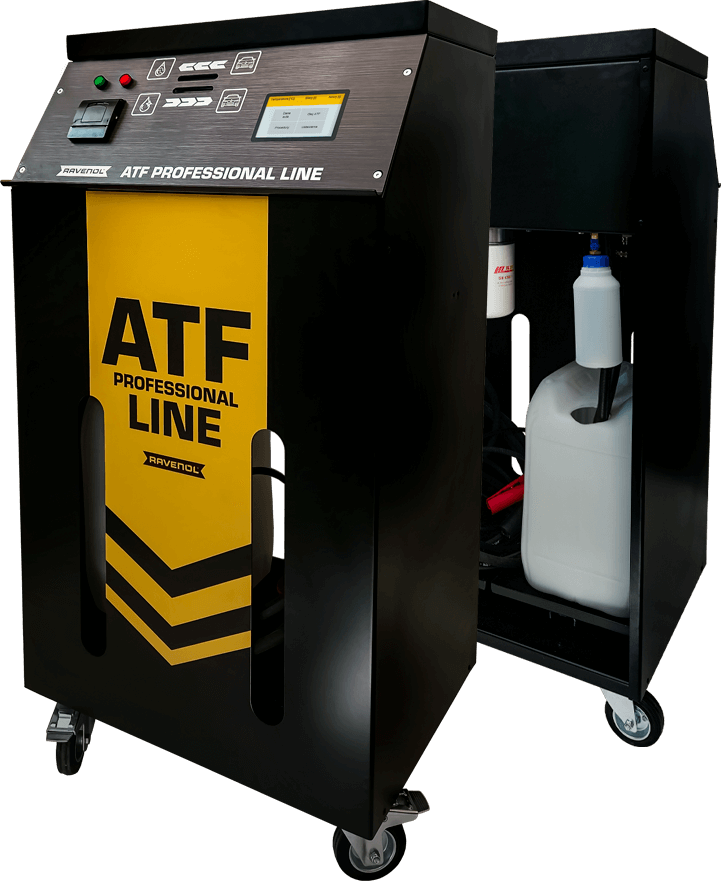

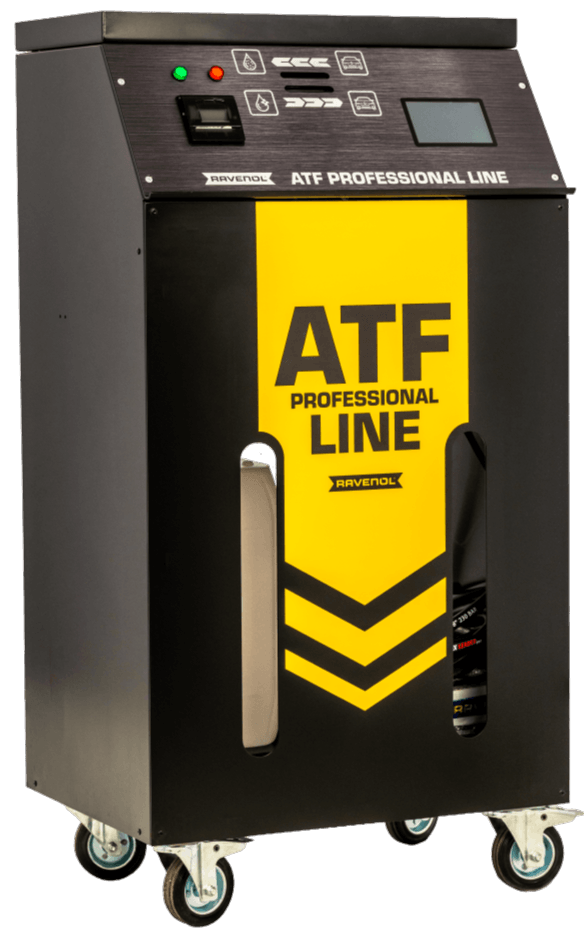

ATF Professional Line Basic
This is an advanced device designed for mechanics who appreciate precision, reliability, and high quality. Modern technology and high-class components ensure accuracy, safety, and a long service life.
The robust design guarantees stable operation even in intensive shop use. The device is manufactured in Europe according to high quality standards, offering professional capabilities in an optimal configuration.
To activate the device, you must create a user account on this website. This is the only way to activate the device using a code and to receive a warranty coverage.

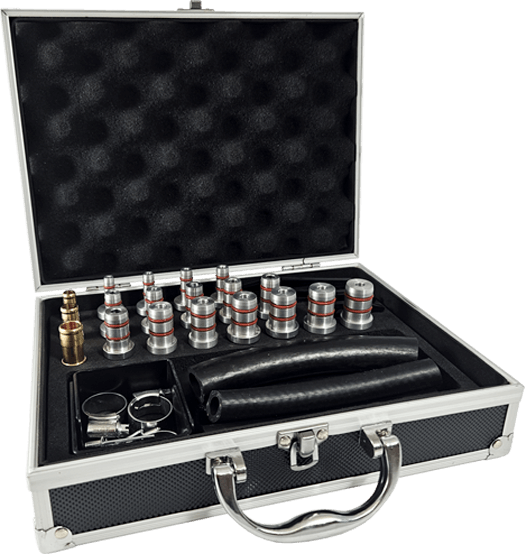

The device is normally supplied with basic adapters that enable dynamic ATF exchange in the most popular types of automatic transmissions.

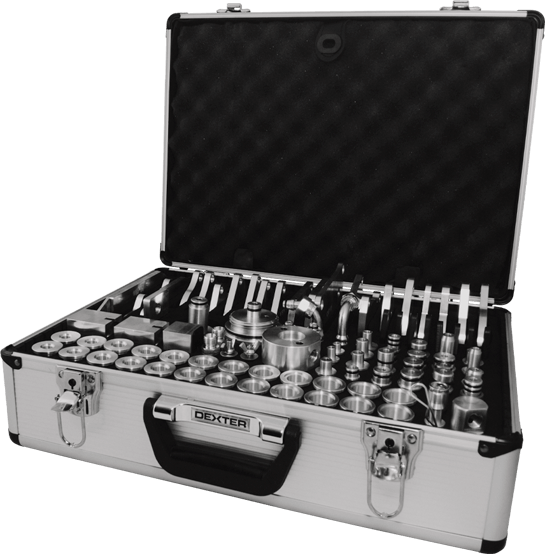

Dedicated adapters are available for shops specializing in specific brands or transmission designs. They can be purchased individually or as a complete set in the convenient RAVENOL KIT 2.
Technical specifications
- Supply voltage 12–15 V DC
- Approximate dimensions (H/W/D) 120/60/47
- Control panel 5" color, resistive touchscreen display—multilingual menu available
- Flow control Automatic ATF flow control during dynamic exchange
- Hydraulic system Complete separation of the hydraulic system of the automatic transmission from the filtering system of the device
- Max. pumping pressure 10 bar
- High-pressure hoses Up to 40 bar
- Max. delivery rate 0–7.5 l/min
- Permissible ATF temp. 10–90°C
- Max. tank weight 2×50 kg
- Printer Thermal printer
- ATF density Adjustable ATF density
- Functions Detergent injection, ATF draining, ATF filling, flushing, dynamic ATF exchange
- Shop information Saving shop information. Option to enter vehicle details
- Product list Saved RAVENOL product list with add and edit capabilities

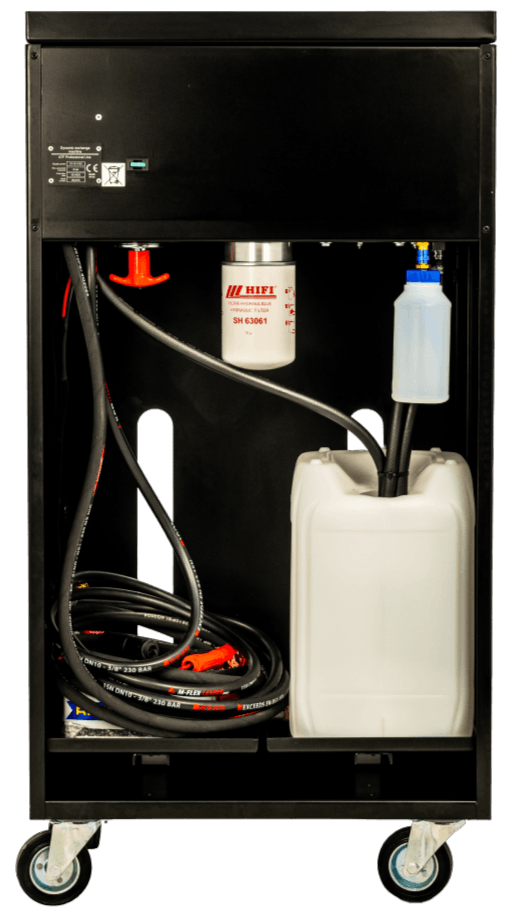

- Safety External fuse and main switch at the rear of the housing
Automatic ATF flow direction detection
Independently checks if the ATF flow direction is correct, eliminating the risk of errors.
Two ATF sight glasses on the device panel
Rated for the pressure of 20 bars and a temperature of up to 100°C, making it much easier to monitor the condition of new and spent ATF.
Detergent injection into the transmission
Injecting a special detergent, e.g., RAVENOL ATF Flush, which increases the aggressiveness of the flushing process, allows for a more thorough cleaning of the transmission.
Transmission flushing
Efficient filtering system that separates solid contaminants from the transmission system, with programmable flushing time.

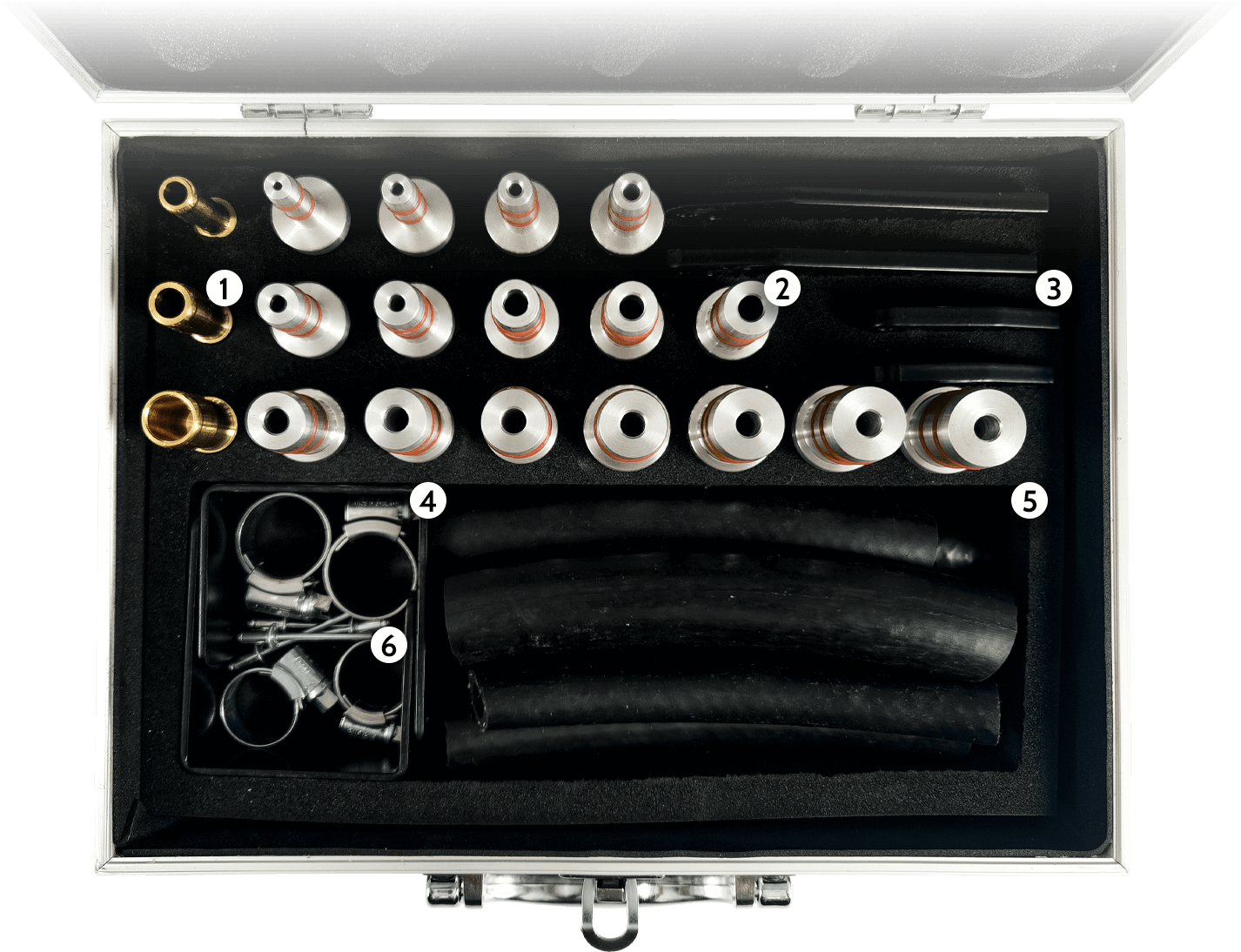

Device accessories
01
02
03
04
05
06
Quick couplers
They enable a quick connection to rubber hoses.
Universal male couplers (16 pcs.)
1×7.5 mm, 1×8.2 mm, 1×9 mm, 1×9.8 mm, 1×10.6 mm, 1×11.5 mm, 1×12.2 mm, 1×13 mm, 1×13.8 mm, 1×14.6 mm, 1×15.5 mm, 1×16.2 mm, 1×17 mm, 1×17.8 mm, 1×18.6 mm, 1×19.3 mm
Kit of universal mounting brackets for male couplers (4 pcs.)
1×12 mm (long), 1×12 mm (short), 1×16 mm (long), 1×16 mm (short)
Hooks
Hooks for holding the hydraulic and electrical lines of the device. Supplied with rivets to fasten them.
Rubber hoses
8 mm, 10 mm, 12 mm, 14 mm
Worm gear clamps
The clamps ensure leak-free ATF flow in the device.

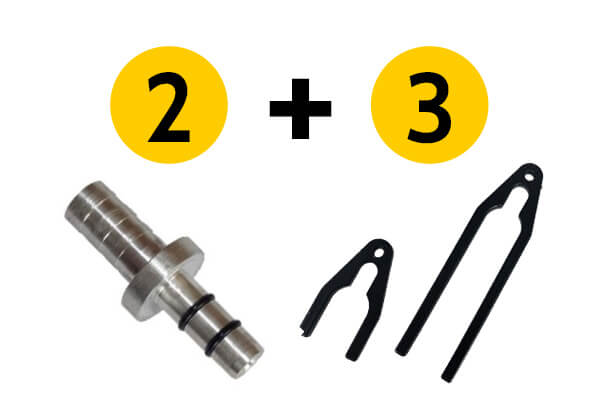

The device comes with a set of male couplers (2) to connect transmissions from various manufacturers such as ZF (e.g., 4HP, 5HP, 6HP), AisinWarner (e.g., 50-40L, 50-42L, 55-50SN, TF-80SC), Getrag, and others.
The mounting brackets (3) can be used to fix universal male couplers in the housing of the transmission or ATF cooler. They are available in two lengths and various widths.
Thanks to the combination of universal couplers and mounting brackets, the operator has great flexibility when connecting the device to the transmission, depending on the available space and the solutions used in the transmission.
